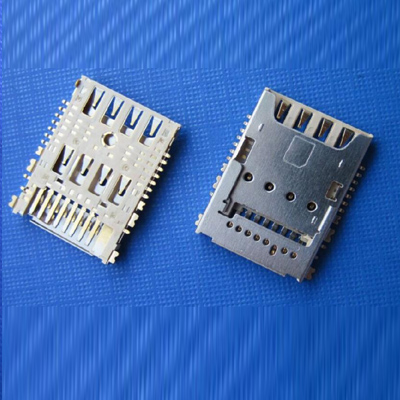

SIM card holder microSim8Pin+TF8Pin No-push (H=2.26)

category:microSim Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNTMKSIMTF-NOTE3
product name:	microSim8Pin+TF8Pin No-push (H=2.26)
specification:	Plastic: white high temperature UL94V-0; terminal: copper alloy; shell: stainless steel
Product Note:	Two in one with CD terminal, L13.00W18.30H2.26
Product Category:	SIM microSim NanoSIM

Technical parameters:
1. Rated current: 0.5A AC/DC
2. Rated voltage: 30V AC/DC
3. Operating temperature: -25°C ~ +70°C
4. Storage temperature: -25°C ~ +70°C
5. Contact resistance :50m ohms max.
6. Withstanding voltage: 100V AC / 1 minute
7. Insulation resistance: 100M ohms min./500VDC
8. Durability: microSIM 3000, microSD 5000 times
9. Product temperature resistance: 260±5°C 10S
10 Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable performance.
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.
2 This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: on-line Pre-inspection-->Bags-->Assembled microSIM shell-->Assembled microSD shell-->Card test-->Electrical test-->Flatness test-->Positive test-->Appearance test -->FQC Inspection --> Storage
