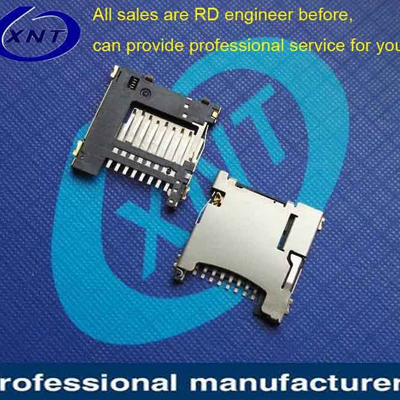

SIM card connector 503182-xx42 TF/microSD push type

category:microSD/TF Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT22-P401-42
product name:	503182-xx42 TF/microSD push type (H=1.45mm)
specification:	Plastic: Black high temperature UL94V-0; Terminal: Copper alloy
Product Note:	Push type L14.94W14.95H1.45
Product Category:	microSD TF SD Series

Technical parameters:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 100V AC/DC
3. Operating temperature: -25°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact resistance :50m ohms max.
6. Insulation resistance: 1000M ohms min./500VDC
7. Durability: 10000 times
8. Product temperature resistance: 260±5°C 10S
Product Description:
1. This connector is widely used in mobile phones, tablet computers, Navigators, LCD TVs, automobiles, smart wearable devices, aeronautical fields, etc.;
2. Inspection procedures for secondary products: IQC feed inspection--> storage--> pre-line self-test--> IPQC inspection--> FQC Final inspection-->OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine cutting adhesive tape -> assembly CD pin -> assembly spring, slider, hook -> assembly Shell -> Push test -> Electrical test -> Flatness test -> Positive test -> Appearance test -> FQC test -> Packaging -> Storage
