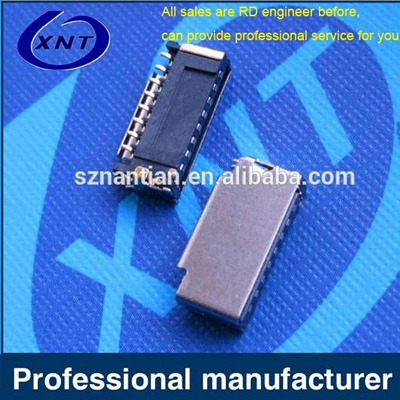

TF card holder TF/microSD push pull type

category:microSD/TF Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-TFDTNHHxxx
product name:	TF/microSD push pull type (H=3.00mm/3.35mm/3.75mm)
specification:	Plastic: Black high temperature UL94V-0; Terminal: Copper alloy
Product Note:	Push pull type L11.41*W5.50
Product Category:	microSD TF SD Series

Technical parameters:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 100V AC/DC
3. Operating temperature: -25°C ~ +85°C
4. Storage temperature: -25°C ~ +85°C
5. Contact resistance :50m ohms max.
6. Insulation resistance: 1000M ohms min./500VDC
7. Durability times: 1500 times
8. Product temperature resistance: 260±5°C 10S
Product Description:
1. This connector is widely used in mobile phones, tablet computers, Navigator, etc.;
2. Inspection process for secondary products: IQC feed inspection--> storage--> pre-line self-test-->IPQC inspection-->FQC final inspection-->OQC cargo inspection
3. This product The production process is: pre-line inspection-->automatic machine pre-insertion terminal and blanking tape-->plugging in CDpin1-->plugging in CDpin2-->assembly of housing-->card inspection-->electrical inspection-->plane Test-->Appearance Test-->FQC Test-->Package-->Storage
