POGO pin 2.00mm10.00mm

category:Pogo pin Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-POGO-111138

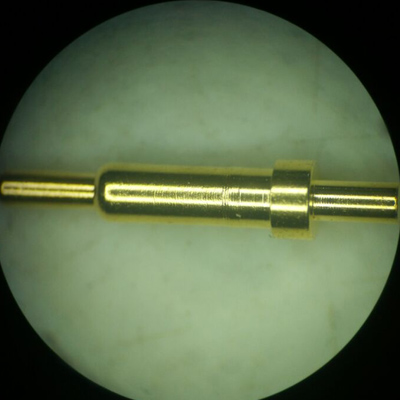

product name:	POGO pin 2.00mm*10.00mm
specification:	Needle Shaft: Brass Gold Plated Inner Tube: Brass Gold Plated Spring: Stainless Steel
Product Note:	POGO pin 2.00mm*10.00mm Needle shaft: 10U" gold inner tube: 4U" gold
Product Category:	Pin Header POGO Pin Series

Technical parameters:
1. Rated current: 1A
2. Rated voltage: 12V
3. Contact resistance: 30m ohms max.
4. Elastic force: 100+/20gf min (working state)
5. RoHS compliant
6. Durability: 10000 times
Product Description:
1. This connector is widely used in computers, flat panels, copiers, printers, smart phones, handheld computers, medical care, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test - -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> assembled spring -> assembly sleeve -> riveting pressure -> elastic inspection - >FQC Inspection-->Storage
