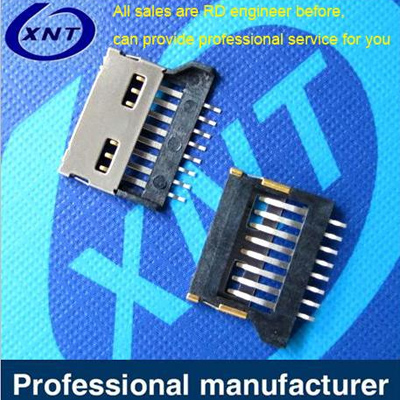

TF card holder TF/microSD push pull type

category:microSD/TF Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	TFJYDKYZ000119A
product name:	TF/microSD push pull type (H=1.50mm)
specification:	Plastic: Black high temperature UL94V-0; Terminal: Copper alloy
Product Note:	Push pull type L12.16W10.05H1.50
Product Category:	microSD TF SD Series

Technical parameters:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 100V AC/DC
3. Operating temperature: -25°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact resistance :50m ohms max.
6. Insulation resistance: 1000M ohms min./500VDC
7. Durability: 5000 times
8. Product temperature resistance: 260±5°C 10S
Product Description:
1. This connector is widely used in mobile phones and tablet computers. Navigators, LCD TVs, automobiles, smart wearable devices, aeronautics, etc.;
2. Inspection process for secondary products: IQC feed inspection--> storage--> self-test before going on-->IPQC inspection-->FQC end Inspection -> OQC out of cargo inspection
3. This product production process is: pre-line inspection -> automatic machine cutting adhesive tape -> assembled shell -> card inspection -> electrical inspection -> flatness Inspection --> Appearance Inspection --> FQC Inspection --> Packaging --> Storage
