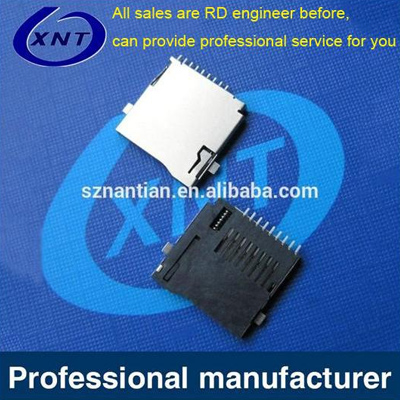

TF card holder / microSD push sink 0.9mm outer ribbon detection

category:microSD/TF Series
The number of clicks:
Release date:2018/06/21
Inquiry

details

Product ID:	0101xAAx09A
product name:	TF/microSD push sink 0.9mm outer strip detection
specification:	Plastic: Black high temperature UL94V-0; Terminal: Copper alloy
Product Note:	Push type with CD terminal, sink type L16.80W15.82H1.80
Product Category:	microSD TF SD Series

Technical parameters:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 125V AC/DC
3. Operating temperature: -20°C ~ +60°C
4. Storage temperature: -40°C ~ +70°C
5. Contact resistance : 100m ohms max.
6. Insulation resistance: 1000M ohms min./500VDC
7. Durability: 10000 times
8. Product temperature resistance: 260±5°C 10S
Product Description:
1. This connector is widely used in mobile phones, tablet computers, Navigators, LCD TVs, smart wearables, automobiles, aviation, etc.;
2. The secondary product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection - ->OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine assembly terminals, sliders, rods, springs -> assembled shell -> push inspection -> electrical inspection -> Flatness test --> Appearance test --> FQC test --> Storage
