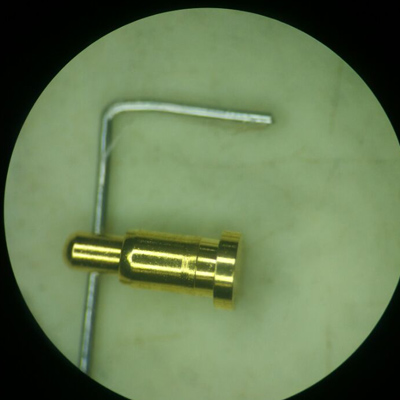

POGO pin 2.00mm4.50m

category:Pogo pin Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-POGO-111139
product name:	POGO pin 2.00mm*4.50m
specification:	Needle Shaft: Brass Gold Plated Inner Tube: Brass Gold Plated Spring: Stainless Steel
Product Note:	POGO pin 2.00mm*4.50mm Needle shaft: 3U" gold inner tube: 3U" gold
Product Category:	Pin Header POGO Pin Series

Technical parameters:
1. Rated current: 1A
2. Rated voltage: 30V
3. Contact resistance: 50m ohms max.
4. Elastic force: 150gf max. (working status)
5. RoHS compliant
6. Durability: 10000 times
Product Description:
1. This connector is widely used in computers, flat panels, copiers, printers, smart phones, handheld computers, medical, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection-->FQC final inspection-->OQC cargo inspection
3. This product production process is: pre-line inspection -> assembled springs -> assembled casing -> riveting pressure -> elastic inspection -> FQC Inspection --> Storage
