Press SMT type with post

category:Switch button series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	TS-022-250

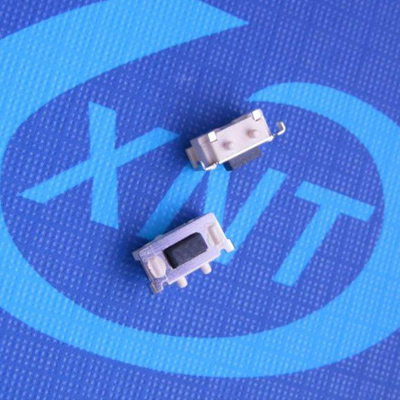

product name:	Press SMT type with post
specification:	Plastic: black high temperature UL94V-0; button: white
Product Note:	Tactile SMT type L7.80W3.503.50
Product Category:	Switch button D-SUB mini din

Technical parameters:
1. Rated current: 50mA
2. Rated voltage: 12V
3. Contact resistance: 100m ohms max.
4. Button strength: 160 ± 30gf
5. Durability: 30000 times
6. Product temperature: 220 ± 5 °C 10S
7. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, computers, flat panels, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC Inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> folded molding material tape -> assembly shrapnel -> assembly button shell -> bending shell and Hot-melt-->button inspection-->flatness inspection-->appearance inspection-->FQC inspection-->storage
