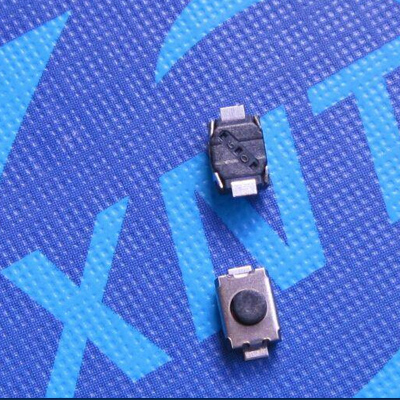

Button SMT type H=2.5

category:Switch button series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	TS-018
product name:	Button SMT type H=2.5
specification:	Plastic: Black high temperature UL94V-0; Button: Black
Product Note:	Tactile SMT type L3.90W2.902.50
Product Category:	Switch button D-SUB mini din

Technical parameters:
1. Rated current: 50mA
2. Rated voltage: 12V
3. Contact resistance: 100m ohms max.
4. Button strength: 180 ± 30gf
5. Durability times: 50000 times
6. Product temperature: 220 ± 5 °C 10S
7. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, computers, flat panels, etc.;
2. This product inspection process is: IQC feed inspection -> Storage -> Pre-line self-test -> IPQC Inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> folded molding material tape -> assembly shrapnel -> assembly button shell -> bending shell and Hot-melt-->button inspection-->flatness inspection-->appearance inspection-->FQC inspection-->storage
