WAFER SMT type 1.85H slim

category:Wafer Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	A1254WR-S-**P

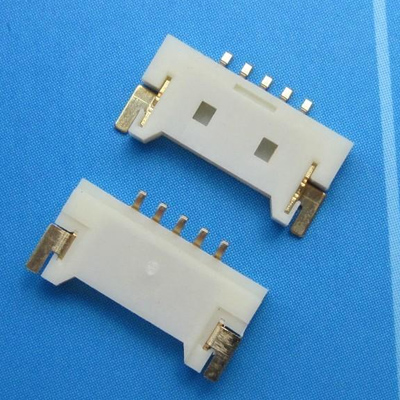

product name:	WAFER SMT type 1.85H slim
specification:	Plastic: white high temperature UL94V-0; terminal: copper alloy
Product Note:	WAFER SMT type 1.85H 02~30Pin
Product Category:	FPC LVDS Series

Technical parameters:
1. Rated current: 1.0A
2. Rated voltage: 125V
3. Contact resistance: 20m ohms max.
4. Withstand voltage: 500VAC
5. Insulation resistance: 100M ohms min./500VDC
6. Durability: 100 times
7 Product temperature: 245 ± 5 °C 10S
8. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, computers, tablet, navigation, LCD TVs, printers, copiers, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automata Plug Terminals & Positioning Feet-->Electricity Test-->Pressure Resistance Test-->Flatness Test-->Appearance Test-->FQC Test-->Storage
