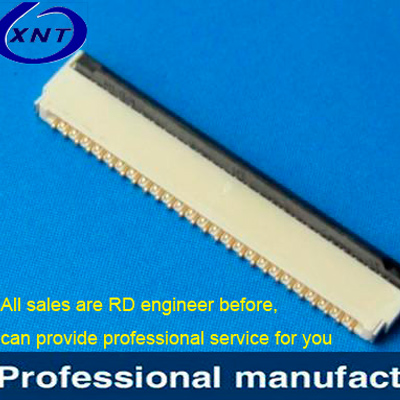

FPC 0.30mm pitch 1.0H ZIF

category:FPC Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	FPC0309-xxR-TxGN
product name:	FPC 0.30mm pitch 1.0H ZIF
specification:	Plastic: High temperature resistance UL94V-0; Rear cover: Black high temperature UL94V-0 Terminal: Copper alloy gold plating
Product Note:	FPC 0.30mm pitch SMT type, H=1.0mm 13~73Pin
Product Category:	FPC LVDS Series

Technical parameters:
1. Rated current: 0.2A
2. Rated voltage: 30V
3. Contact resistance: 30m ohms max.
4. Durability times: 20 times
5. Product temperature: 245±5°C 10S
6. RoHS Compliant
:
1. This connector is widely used in mobile phones, computers, flat panels, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection --> FQC final inspection --> OQC out of cargo inspection
3. This product production process is: pre-line inspection -> automatic machine plug terminal -> assembled back cover -> electrical test -> pressure test - ->Flatness test-->Appearance test-->FQC test-->Storage
