2.0 POGOPIN-4P Mother seat

category:Pogo pin Series
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-PW84-0464HB-B

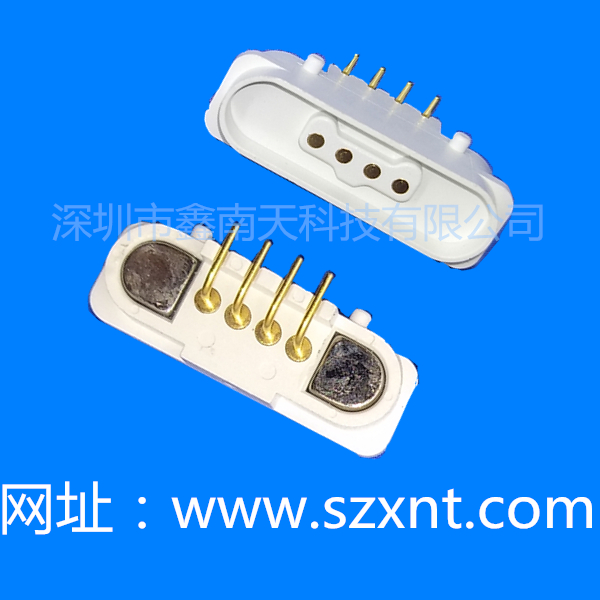

product name:	2.0PH 4P POGO PIN Mother seat
specification:	Needle Shaft: Brass Gold Plated Inner Tube: Brass Gold Plated Spring: Stainless Steel
Product Note:	POGO pin 20.00mm7.40mm6.60MM Needle shaft: 3U" gold inner tube: 1U" gold
Product Category:	Pin Header POGO Pin Series

Technical parameters:
1. Rated current:. 2A
2. Rated voltage: 12V
3. Contact Resistance:. Max 30m Ohms
4. stretch:. 70 +/- 20gf max (operating state)
5. meet RoHS
6. The durable: 10000
Product Description:
1. This connector is widely used in computers, flat panels, copiers, printers, smart phones, handheld computers, medical care, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> before going online Inspection-->IPQC inspection-->FQC final inspection-->OQC cargo inspection
3. This product production process is: pre-line inspection -> assembled spring -> assembled casing -> riveting -> elastic inspection -->FQC Inspection --> Storage
