Earphone Holder 3.5mm phone jack 3.35mm DIP type

category:Headset
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	PJ-335

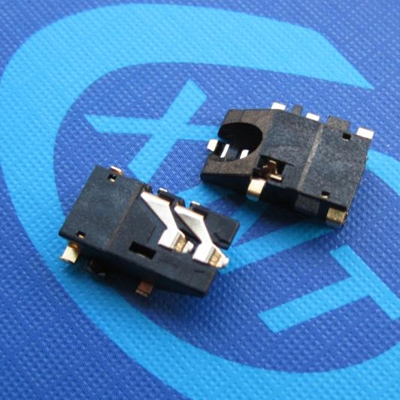

product name:	3.5mm phone jack 3.35mm DIP type
specification:	Plastic: Black high temperature UL94V-0; Terminal: Copper alloy
Product Note:	3.5mm Audio jack female, sink 3.35 L12.00W8.30H4.20
Product Category:	Headphone Stand Power DC Block Series

Technical parameters:
1. Rated current: 1.0A
2. Contact resistance: 50m ohms max.
3. Withstand voltage: 500V AC min.
4. Insulation resistance: 1000M ohms min./500VDC
5. Durability: 5000 times
6. Product resistance Temperature: 245±5°C 10S
7. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, computers, flat panels, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> Storage -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine plug terminal -> electrical Inspection-->pressure test-->hole inspection-->appearance inspection-->FQC inspection-->storage
