Product ID: | XNT-MINIDIN-00226 |

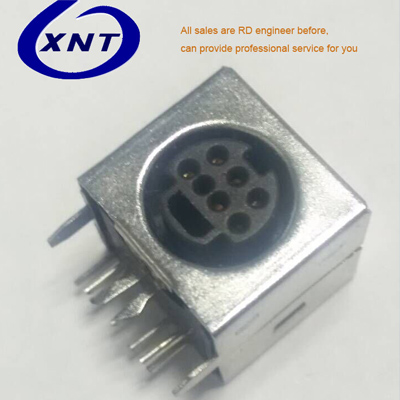

product name: | MINI DIN Female 7PIN dip Enclosure DIP |
specification: | Plastic: Black high temperature UL94V-0; Terminal: Copper alloy |
Product Note: | mini din, 7pin L14.10 * W13.20 * H12.90 |
Product Category: | Switch button D-SUB mini din |
Technical parameters:
1. Rated current: 0.3A
2. Rated voltage: 40V
3. Operating temperature: -20 °C ~ +85 °C
4. Storage temperature: -20 °C ~ +85 °C
5. Contact resistance: 30m ohms max.
6 Insulation resistance: 100M ohms min./500VDC
7. Durability: 1000cycles
8. Product temperature resistance: 220±5°C 10S
9. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, tablet computers, navigation devices, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. This product Production process is: pre-line inspection -> assembled terminal -> assembled shell -> electrical test -> pressure test -> hole gauge -> appearance test -> FQC test -> warehousing
