HDMI C TYPE plug

category:HDMI Type C
The number of clicks:
Release date:2018/06/22
Inquiry

details

Product ID:	XNT-HMDI12-111193

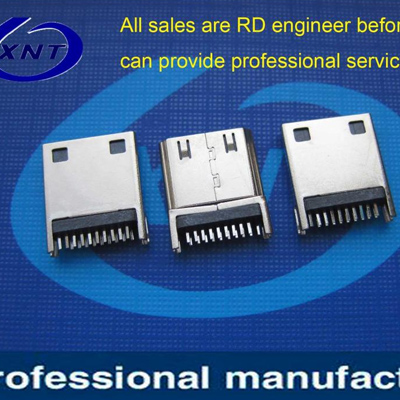

product name:	HDMI C TYPE plug Clamp 1.20mm Nickel plated, gold-plated terminal
specification:	Plastic: Black high temperature UL94V-0; Terminal: Copper alloy housing: Copper
Product Note:	Tray tray, 100PCS/Tray; 6000PCS/box
Product Category:	HDMI series

Technical parameters:
1. Rated current: 0.5A
2. Rated voltage: 40V
3. Operating temperature: -20 °C ~ +85 °C
4. Storage temperature: -20 °C ~ +85 °C
5. Contact resistance: 50m ohms max.
6 Insulation resistance: 100M ohms min./100VDC
7. Durability times: 5000 times
8. Product temperature resistance: 260±5°C 10S
9. RoHS Compliant
Product Description:
1. This connector is widely used in mobile phones, tablet computers, navigators , LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This Product production process is: pre-line inspection -> automatic machine plug terminal -> Binder band -> assembly shell -> after the assembly plug -> appearance inspection -> FQC inspection -> warehousing
