Product ID: | A01SB141B1-395 |

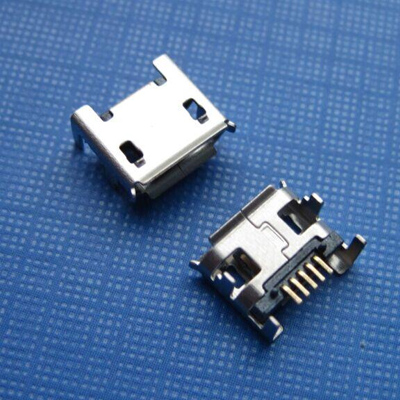

product name: | microUSB B type 5pin (Soldering: SMT, Case: DIP) Flanged |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy |
Product Note: | B type female connector, terminal SMT type housing DIP type with flanged edge L8.10*W6.67*H2.35 |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 1.0A
2. Operating temperature: -30 °C ~ +85 °C
3. Storage temperature: -30 °C ~ +85 °C
4. Contact resistance: 50m ohms max.
5. Insulation resistance: 100M ohms min./500VDC
6. Withstanding voltage: 100V AC for 1 minute
7. Durability: 10000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones and tablet computers. , navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC cargo inspection
3. The production process of this product is: pre-line inspection-->automatic machine-molding-->assembly shell-->riveted shell-->electrical inspection-->pressure test-->flatness inspection--> Positive test -> Appearance test -> FQC test -> Storage
