Product ID: | FPC0509-**RT** |

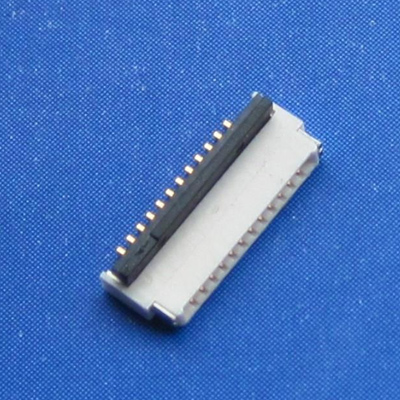

product name: | FPC 0.50mm pitch 1.0H ZIF |
specification: | Plastic: white high temperature UL94V-0; back cover: black high temperature UL94V-0 terminal: copper alloy gold plating |
Product Note: | FPC 0.50mm pitch SMT type, H=1.0mm 04~50Pin |
Product Category: | FPC LVDS Series |
Technical parameters:
1. Rated current: 0.2A
2. Rated voltage: 30V
3. Contact resistance: 30m ohms max.
4. Durability times: 20 times
5. Product temperature: 245±5°C 10S
6. RoHS Compliant
:
1. This connector is widely used in mobile phones, computers, flat panels, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> warehousing -> pre-line self-test -> IPQC inspection --> FQC final inspection --> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine plug terminal & grounding leg -> assembled back cover -> electrical inspection -> resistance Pressure Inspection-->Flatness Test-->Appearance Inspection-->FQC Inspection-->Storage
